H-PF-400W-12/24/

• Moisture-proof, mildew-proof, anti-saltspray semi-filling design • Adopt active PFC circuit,PF value ≥ 0.95 • Slim strip design, height 30mm • 3 years warranty, lifespan>35000 hoursApplication • Indoor LED floodlights, magnetic lights,strips lights • LED screen • Automatic equipment

Product Category:

H-PF Series

H-PF-400W-12-24V.pdf

Message

Back to list

Product Description

Features：
• Moisture-proof, mildew-proof, anti-saltspray semi-filling design
• Adopt active PFC circuit,PF value ≥ 0.95
• Slim strip design, height 30mm
• 3 years warranty, lifespan>35000 hoursApplication
• Indoor LED floodlights, magnetic lights,strips lights
• LED screen
• Automatic equipment

Model		H-PF-400W-12V	H-PF-400W-24V	H-PF-400W-48V
OUTPUT	DC voltage	12V	24V	48V
	Rated current	33.3A	16.6A	8.3A
	Current range	0-33.3A	0-16.6A	0-8.3A
	DC output power	400W	400W	400W
	Ripple & Noise ( max) note.2	≤180mv	≤150mv	≤130mv
	Load Regulation	1%	1%	1%
	Linear Regulation	1%	1%	1%
	Efficiency	≥93%	≥94.5%	≥94.5%
INPUT	Voltage range	110-240VAC
	Frequency range	50-60Hz
	AC current( Typ. )	4A 115VAC 1.9A 230VAC
	PF Value	PF≥0.98/115VAC PF≥0.95/230VAC
	Cold Start Current	40A/230VAC
	Anti-surge	L,N:2KV L,N-PE:4KV
PROTECTION	Over current Protection	Greater than 105% of the rated output current, circuit protection,when the abnormality is removed, the circuit returns to normal
	Over voltage Protection	Greater than 130% of the rated output voltage, circuit protection, theoutput voltage will be automatically cut off
	Short Circuit Protection	Hiccup mode, it can recover automatically after the abnormalcondition is removed
ENVIRONMEN	Working Temperature,Humidity	-20~ +60c 20%~90%RH
	Storage Temperature ,Humidity	-40~85℃10%~95%RH
SAFETY& EMC	Pressure Resistance	between input and output: AC2.5KV 5mA 60S; between input andcase: AC1.5KV 5mA 60S
	lnsulation Resistance	between input and output: 100M ohms/500VDC/25c

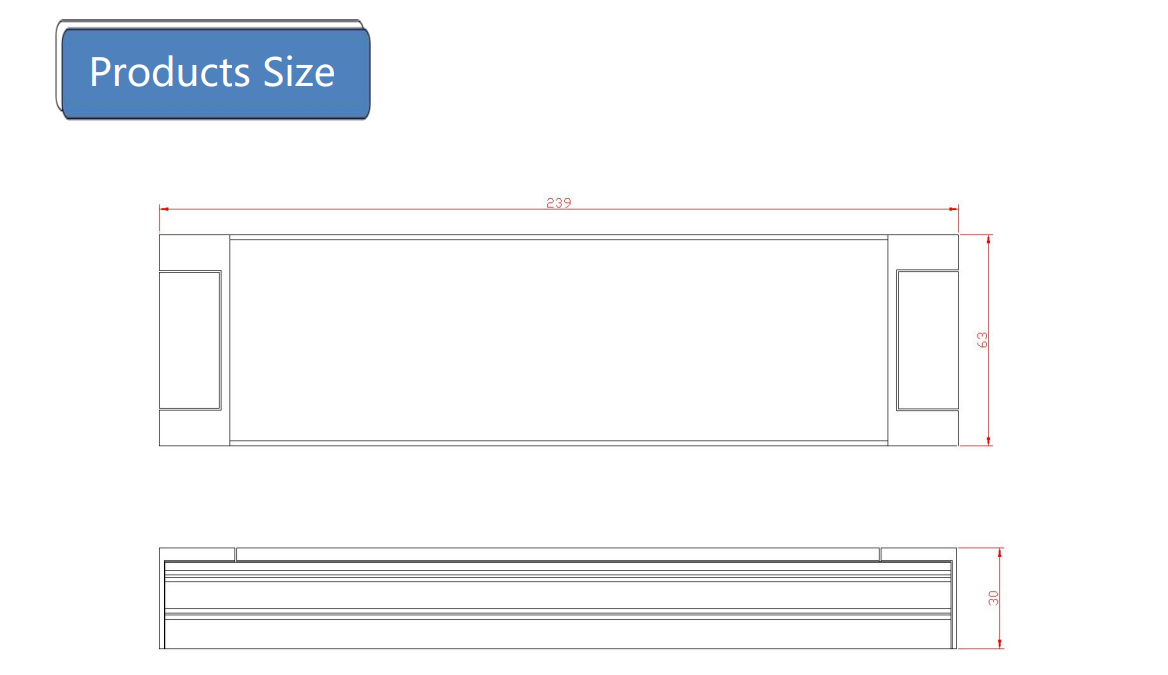

PACKING	Product Size	2396330mm
	Net Weight	0.69kg
