DY-100W-12/24

• New appearanceo • Semi filled glue • Adjustable power • Safe low voltage, No touch hazard • Mute without interference • Efficiency > 90% min@230Vac full load • Product cooling way:Natural air cooling • Mean Time Between Failure (MTBF) ≥50000 hours • Protection types: Short circuit, Over load • Long life design warranty for 3 years • Applied in: Suitable for LED lighting,industrial control equipment, instruments, etc

Product Category:

LX Series

DY-100W-12V24V-LX.pdf

Message

Back to list

Product Description

Features：
• New appearanceo
• Semi filled glue
• Adjustable power
• Safe low voltage, No touch hazard
• Mute without interference
• Efficiency > 90% min@230Vac full load
• Product cooling way:Natural air cooling
• Mean Time Between Failure (MTBF) ≥50000 hours
• Protection types: Short circuit, Over load
• Long life design warranty for 3 years
• Applied in: Suitable for LED lighting,industrial control equipment, instruments, etc

Model		DY-100W-12-LX			DY-100W-24-LX
OUTPUT	DC voltage	12V			24V
	Rated current	7A			3A
	Current range	0-7A			0-3A
	DC output power	100W			100W
	Ripple & Noise ( max) note.2	800mvp-p			500mvp-p
	Current Tolerance	±5%			±2%%
	Line Regulation	±2%			±1%
	Load Regulation	±2%			±1%
	Setup Time	<800ms @230Vac full load
	Power Regulation		100%	75%	50%	35%
		ON-1		·		·
		ON-2			·	·
INPUT	Voltage range	180-264VAC			180-264VAC
	Frequency range	47-63Hz			47-63Hz

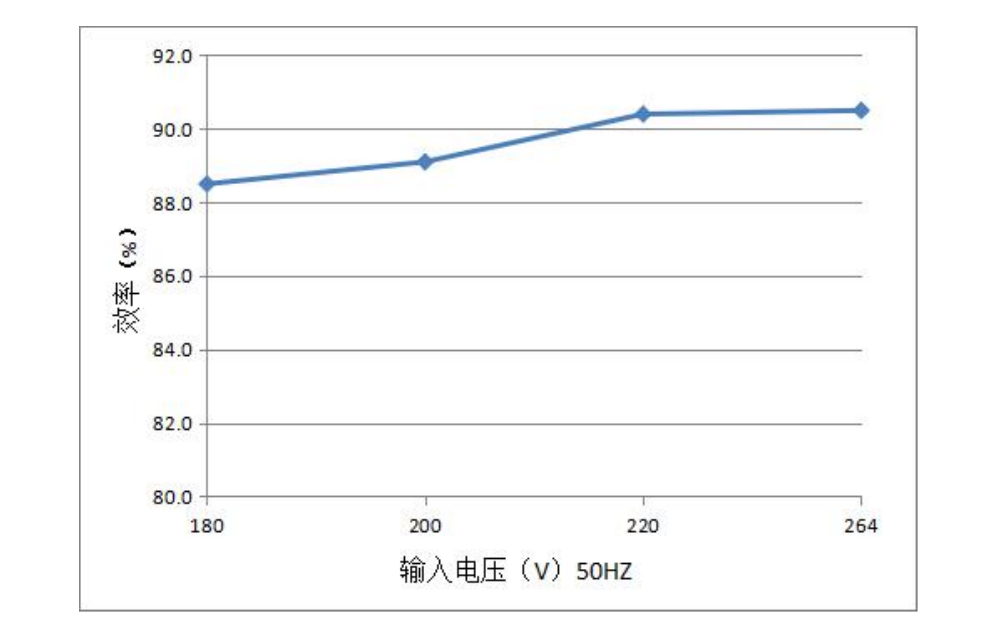

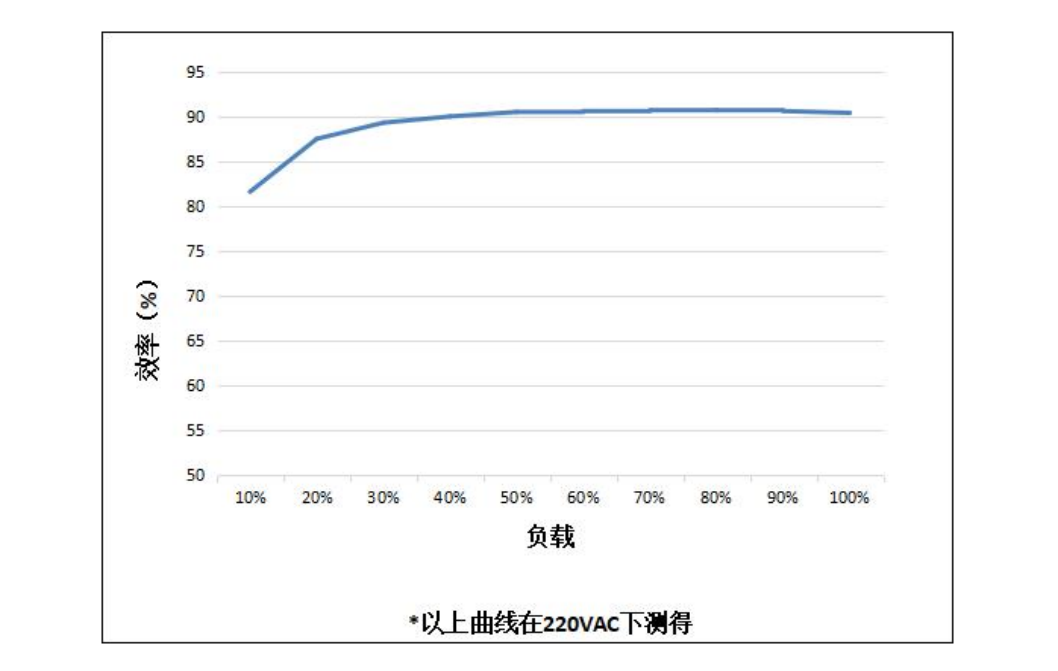

	Efficiency	>88%@220Vac full load
	Power Factor	/
	Thd	/
	Input Max Current	〈0.9A @180Vac full load 180Vac input,full load lin 〈 0.9
	Inrush Current	Cold Start 130A max @230Vac Cold start the largest 130A@230Vac
PROTECTION	Short Circuit	Hiccup Mode, recovers automatically after fault condition is removed
	Over load	105%-130% rated output power
		Protection mode: the product starts to gradually reduce the output voltage untilthe hiccup state to protect the product from damage. When the fault is removed, the power supply returns to normal operation
	Over Temperature	/

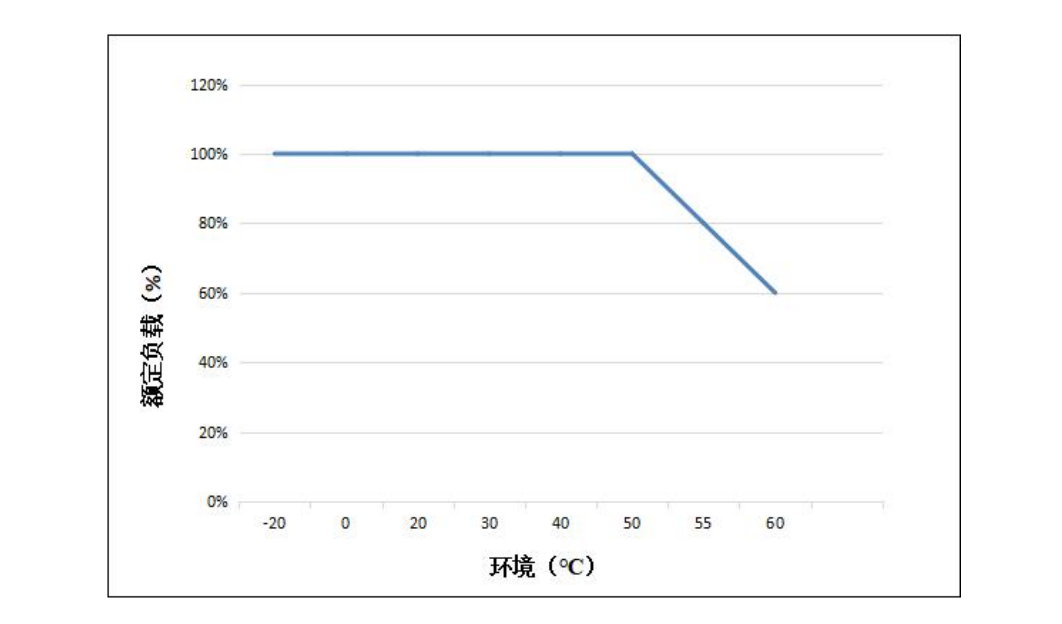

ENVIRONMEN	Working Temp.	-25℃~ +55C( Refer to "derating curve”)
	Max Enclosure Temp.	T case=+70 ℃
	Working Humidity	20 ~ 90% RH Non-condensing
	Storage Temp,Humidity	-40~ +85C，10 ~95% RH
	Vibration	10~500Hz,5G 12Min./1cycle, period for 60min , each along X,Z,Y axes
SAFETY& EMC	Safety	/
	Emc	/
	Lightning Suger	Differential Mode +/- 2.5KV(2ohm)
	Leakage Current	<0.75mA /230Vac
RELIABILITY	The power supply shall under go a minimum of 2 Hours burn-in test at full load condition
	The MTBF shall be at least 100k hrs at 25°C， Full load and nominal input condition
	warranty for 3years
