DY-36W-12-H

DY-36W-24-H

· Aluminum alloy shell, natural air cooling · High dependability constant pressure mode output · IP68 protection level, can be used all day weather conditions · 100% full load burn-in test · Suitable for LED lighting · Products passed CE, RoHS certification · 3 years warranty

Product Category:

H Series

36W H series LED Switch power supply - 副本.pdf

Message

Back to list

  • Product Description
  • Model DY-36W-12-H DY-36W-24-H
    OUTPUT DC voltage 12V±5% 24V±5%
    Rated current 3A 1.5A
    Current range 0-3A 0-1.5A
    DC output power 36W 36W
    Ripple &Noise (max) note.2 <100mV <100mV
    Load stability 1% 1%
    Voltage tolerance  note.3 1% 1%
    Setup, Rise time   note.4 200ms,50ms 200ms,50ms
     Hold up time(Typ.) 20ms 20ms
    INPUT Voltage range 110-250V AC
    Frequency range 50-60Hz
    AC current(Typ.) 0.75A 230VAC
    Inrush current Cold start ≤40A
    Incoming line stability ±0.5%
    Power factor(Typ.) PF≧0.6
    Efficiency  (Typ.) ≥88% ≥89.1%
    Leakage current ≤5mA/260VAC
    PROTECTION Short circuit   The power supply can resume normal operation when the short circuit is removed during power supply.
    Overload 105%-200% rated output power
    Protection type:Hiccup mode,recovers automatically after fault condition is removed
    Over current After the over current fault is removed, the power supply will automatically resume normal operation.
    Over voltage   When the output voltage exceeds the rated voltage, the power supply will be protected and normal operation can be resumed after the fault is removed.
    ENVIRONMEN Working temp.    -20℃ +45℃ 20%~90%RH
    Working humidity -40℃ +85℃ 10%~95%RH
    Storage temp., humidity -20℃~+85℃，10%~95%RH
    Temp. coefficient ±0.03%℃(0-5℃)
    Vibration 10-500Hz, 2G 10min. / 1 cycle,  60 min. each axes
    SAFETY&EMC Aging test Input voltage : 220V 50HZ   Rated output current 25℃,  Burn-in 2h
    Withstand voltage Input and output: 2.5KVAC 5mA 60s; input and shell; 2KVAC 5mA 60s
    Isolating resistance Between input and output, input and shell: 500VDC / 100MΩ
    EMC emission Compliance to EN55032(CISPR32)Class B.EN61000-3-2,-3,EAC TP TC 020
    EMC immunity Compliance to EN61000-4-2.3.4.5.6.8.11.EN55024,light industry level,criteria A,EAC TP TC 020
    Safety standards UL62368-1,TUV EN62368-1.EAC TP TC004 approved

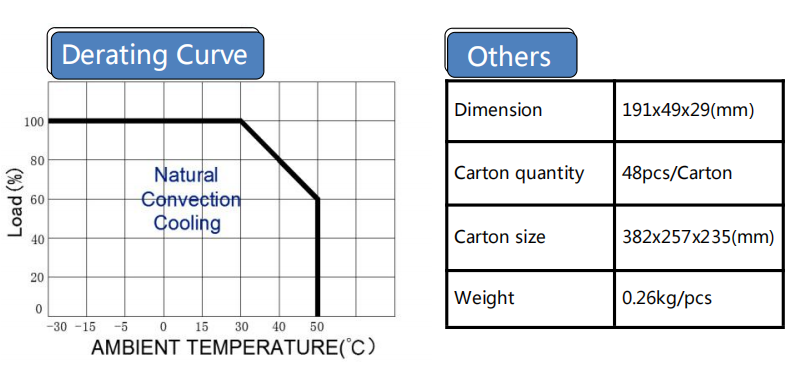

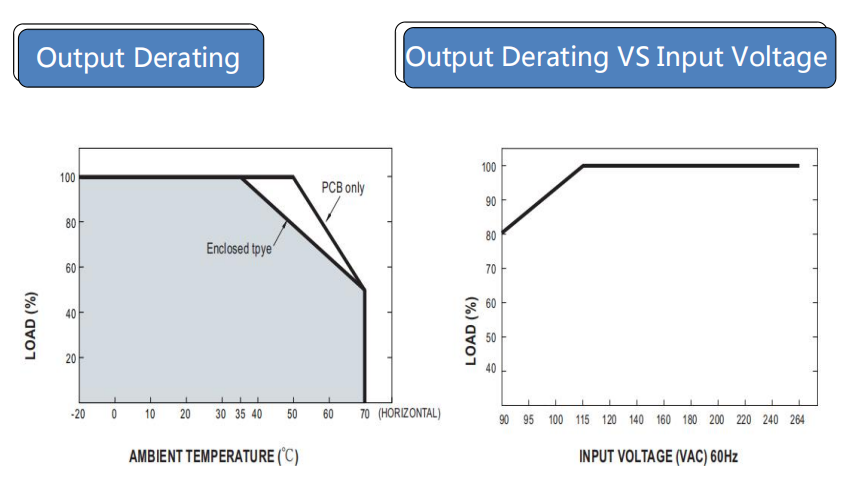

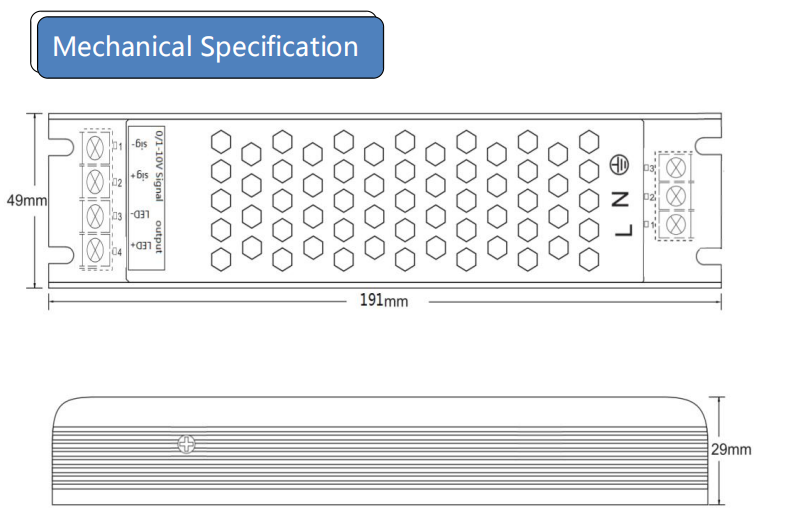

    NOTE All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.
    Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf &47uf parallel  capacitor.
    Tolerance: includes set up tolerance. Line regulation and load regulation.
    Length of set up time is measured at first cold start .Turning ON/OFF the power supply may lead to increase of the set up time.
