DY-300W-12/24-XT

Product Category:

XT Series

DY-300W-XT.pdf

Message

Back to list

Product Description

SPECIFECATION
Model		DY-300W-12-XT	DY-300W-24-XT
OUTPUT	DC voltage	12V	24V
	Rated current	25A	12.5A
	Current range	0-25A	0-12.5A
	DC output power	300W	300W
	Ripple & Noise ( max) note.2	500mVp-p	500mVp-p
	CURRENT TOLERANC	± 2%	± 2%
	LINE REGULATIO	±1%	± 1%
	LOAD REGULATION	±1%	±1%
	SETUP TIM	<800ms @230Vac full load
	SLow START TIME	<30s@230vac full load
INPUT	Voltage range	110-260VAC
	Frequency range	47-63Hz

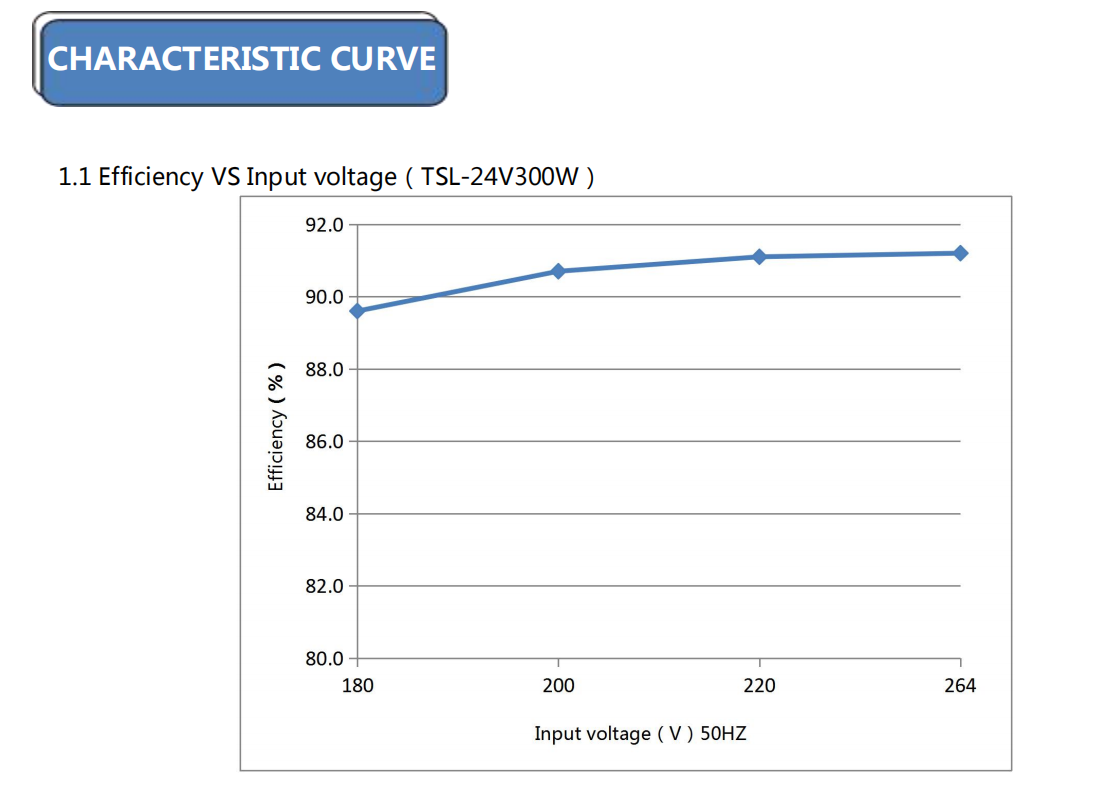

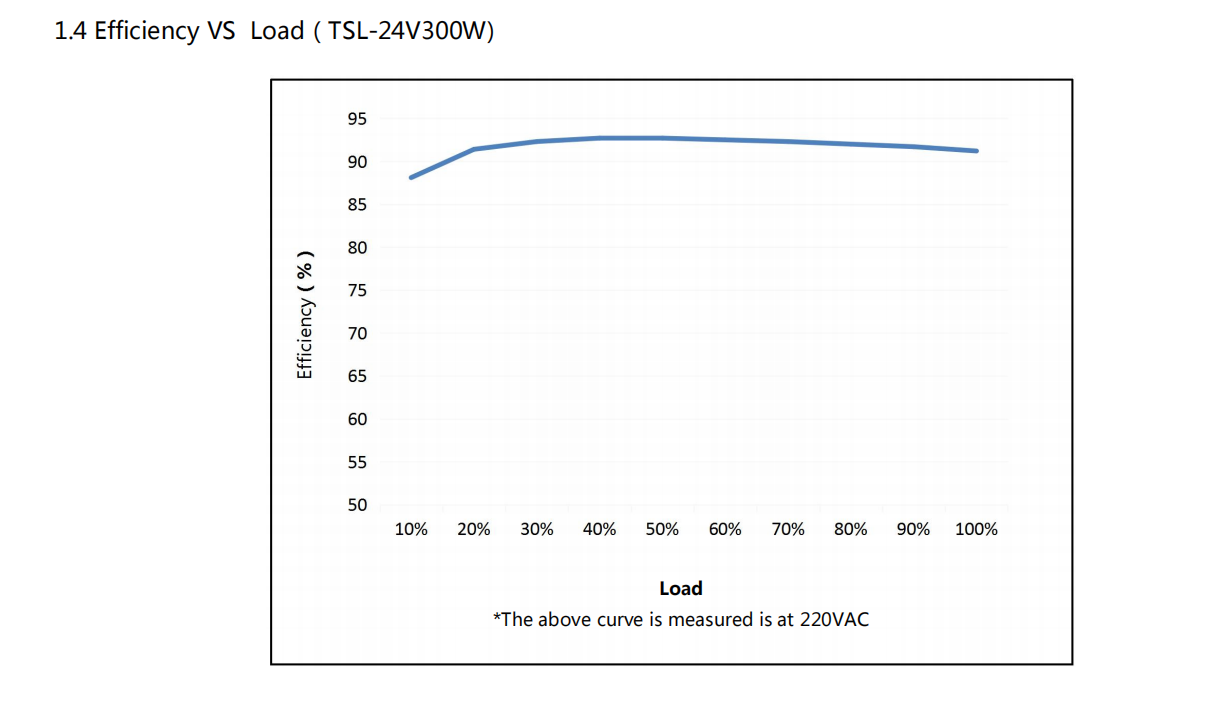

	EFFICIENCY	>91% @220Vac full load
	Power factor( Typ. )	/
	THD	/
	INPUT MAX CURRENT	《2.5A @180V ac full load 180vac input , full load lin 《2.5A
	INRUSH CURRENT	Cold Start 130A max @230Vac Cold start the largest 130A@230Vac
PROTRCTION	Short circuit	Hiccup Mode, recovers automatically after fault condition is removed.
	Overload	105%-150% rated output power.
		Protection mode; the product is hiccup state, protect the productfrom damage, when the fault is ruled out, the power supply is nor mal.
	Over current	After the over current fault is removed, the power supply will automatically resume normal operation.
	Over temperature	/
		/

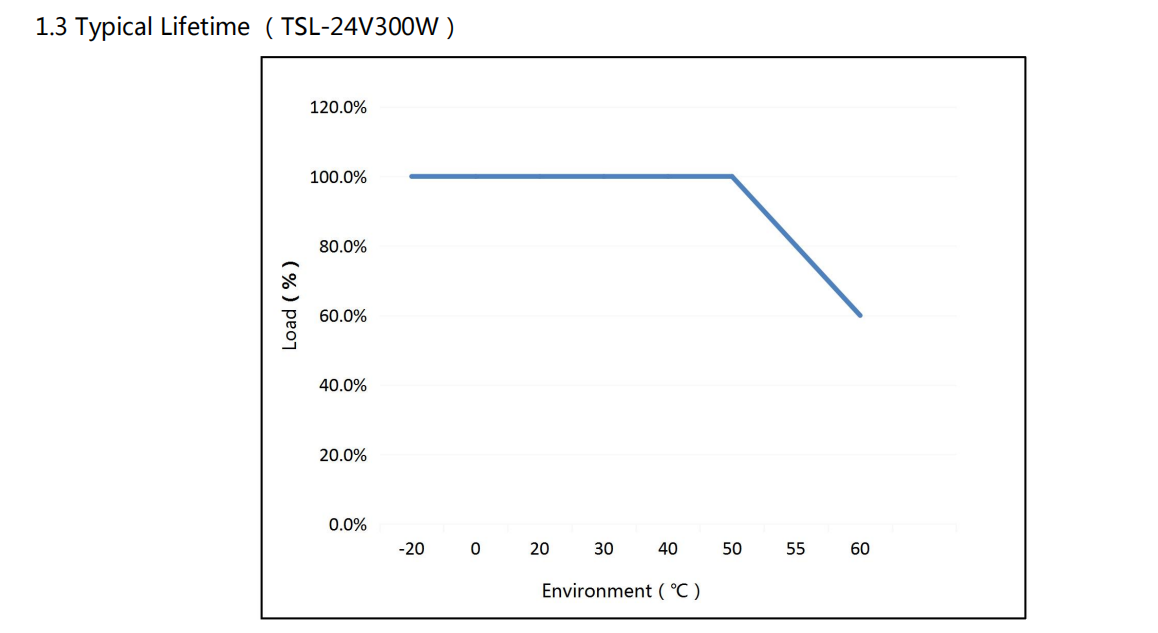

ENVIRINMEN	Working temp	-25℃ ~ +55℃( Refer to“derating curve”)
	Working humidity	20% ~90%RH non-condensing
	Storage temp.humidity	-40℃ ~ +85℃， 10% ~95%RH
	Vibration	10~500Hz,5G 12Min./1cycle, period for 60min ,each along X,zYaxes
SAFETY&EMC	SAFETY	/
	EMC	/
	LIGHTNING SUGER	Differential Mode +/- 2.5KV(2ohm)
	LEAKAGE CURRENT	<0.75mA /230Va
RELIABILITY	The power supply shall under go a minimum of 2 Hours burn-in test at full load conditio.
	The MTBF shall be at least 100k hrs at 25°℃, Full load and nominal input condition.
	warranty for 5years.
